Scott Antes AGP-09 Jose Ramirez Classical Guitar Plan

Designed by renowned guitar designer Scott E. Antes, the AGP-09 is an authentic Jose Ramirez Classical Guitar plan taken from a 1966 Authentic Jose Ramirez Classical Guitar. A 1966 José Ramírez classical guitar is one of the most desirable production-era Spanish classical guitars ever made.

These plans are printed on two full-size (1:1 scale) pages on heavy white paper measuring 35½" × 23¾" and are printed in the USA. Each set is carefully folded to approximately 12" × 9" and shipped in a protective folder.

This edition is offered through Luthier Suppliers with permission from the Antes family.

Free shipping within the United States. Please contact us for international shipping rates.

What's Included

Complete full-scale construction plans. Wood, hardware, and other guitar components are sold separately. These plans include full-scale drawings for nearly every wooden component of the guitar, along with detailed construction dimensions and reference information, including:

• Full body outline

• Top and back bracing layouts

• Brace profiles and cross sections

• Fretboard layout with fret spacing (1–20)

• Neck side profile and contour sections

• Guitar side profile

• Heel profile and heel block

• Bridge dimensions and bridge pin spacing

• Peghead layout and tuner hole locations

• Nut and saddle slot dimensions

• Neck block and end block dimensions

• Body cross sections

• Construction notes and reference dimensions

• Measurements in both inches and millimeters

These plans can also be used to make:

• Body molds

• Peghead templates

• Bridge templates

• Neck profile templates

• Shop reference drawings

• Or simply framed as workshop artwork.

About the AGP-09

These guitars helped define the sound of modern concert classical guitar in the 1960s and were closely associated with Andrés Segovia. By 1966, the workshop was run by José Ramírez III (1922–1995), the third generation of the famous Madrid family. Under his leadership, Ramírez departed from traditional Torres-inspired guitars and pursued a larger, louder instrument with greater projection for concert halls. This was a significant evolution in classical guitar design. One of the defining characteristics is the 664 mm scale, which Segovia requested. It produces:

• higher string tension

• enormous headroom

• excellent sustain

• powerful bass response

Many modern players with smaller hands find the scale noticeably longer than contemporary classical guitars.

The detailed full-scale drawings cover every major component of the instrument and are intended for builders who already have a basic understanding of acoustic guitar construction.

Please Note

These are professional luthier construction plans, not a step-by-step instruction manual. They are intended to be used alongside standard guitar-building techniques and references.

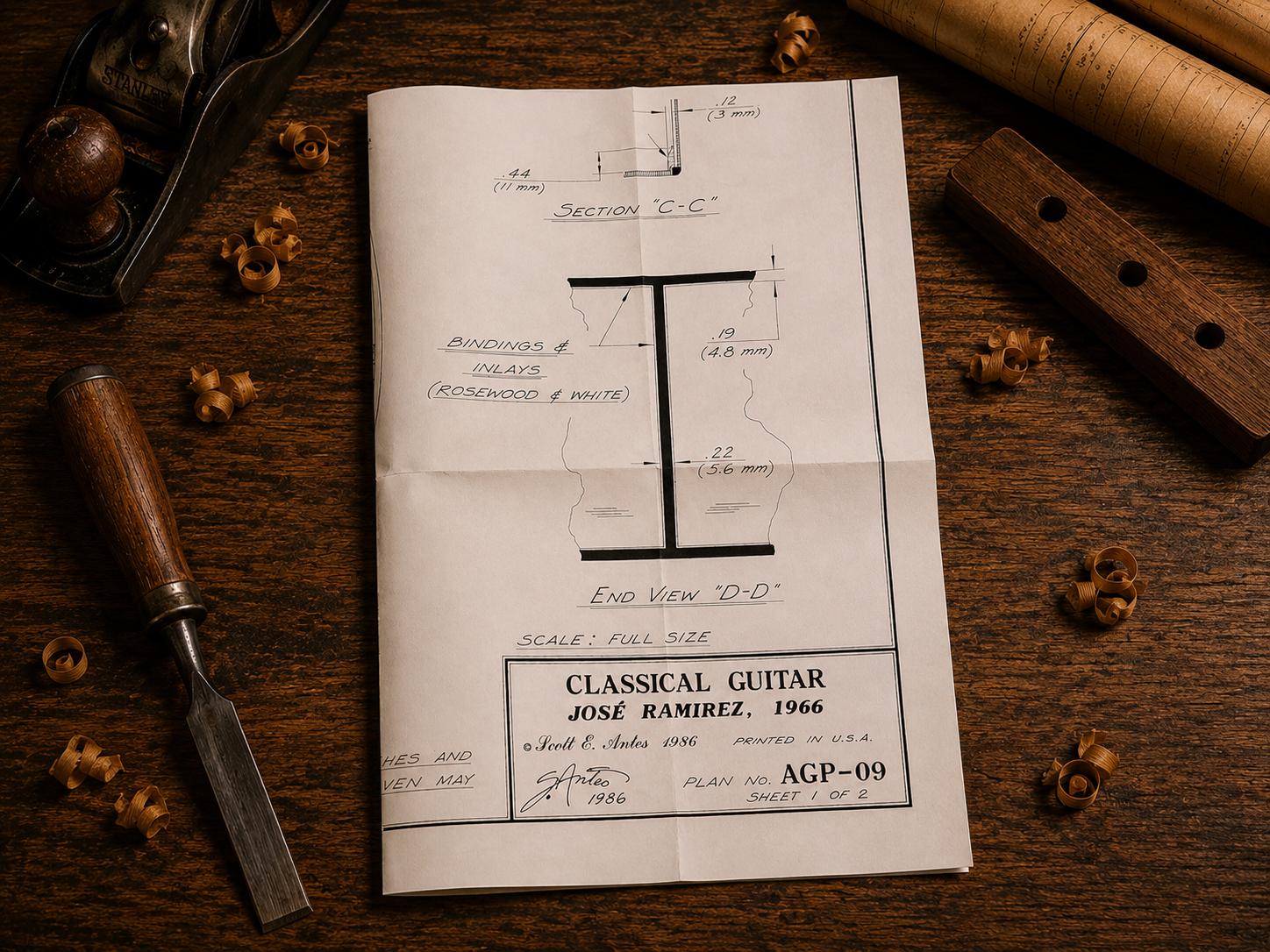

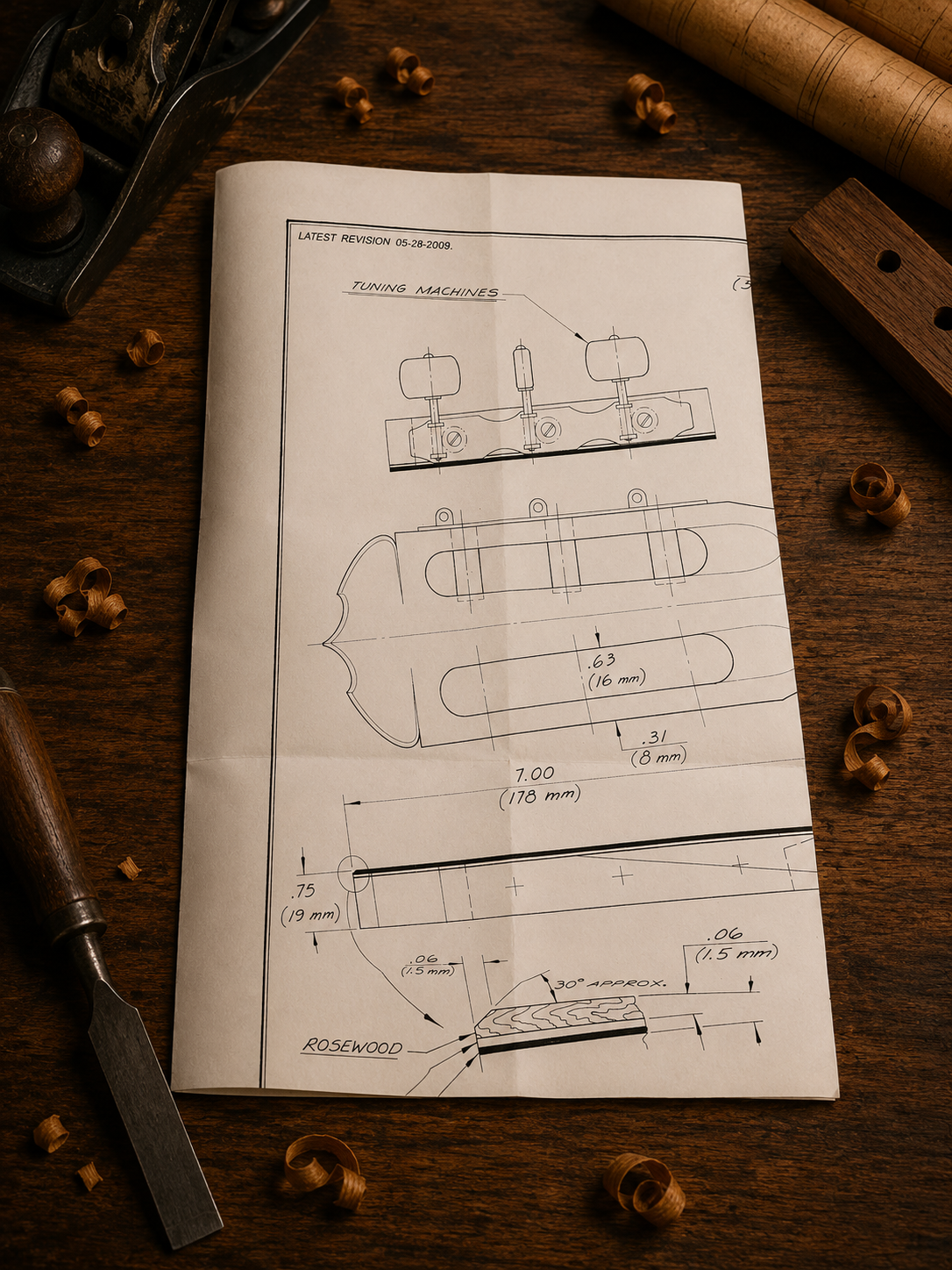

The first product image is an AI-generated illustration created to showcase the style of the plans. While it accurately represents the appearance of the product, the guitar shape, curves, and measurements shown in that image are not intended to be used for construction. The remaining images are photographs of the actual full-scale plans included with your purchase.
