Scott Antes AGP-07 Steel String "Auditorium" Guitar Plan
Designed by renowned guitar designer Scott E. Antes, the AGP-07 is a traditional steel-string auditorium guitar plan featuring balanced body proportions, a comfortable waist, and classic X-braced construction. This is a 24.900” Scale(632.46 MM).
These plans are printed at full-size (1:1 scale) on heavy white paper measuring 35½" × 23¾" and are printed in the USA. Each set is carefully folded to approximately 12" × 9" and shipped in a protective folder.
This edition is offered through Luthier Suppliers with permission from the Antes family.
Free shipping within the United States. Please contact us for international shipping rates.
What's Included
Complete full-scale construction plans. Wood, hardware, and other guitar components are sold separately. These plans include full-scale drawings for nearly every wooden component of the guitar, along with detailed construction dimensions and reference information, including:
Full body outline
Top and back bracing layouts
Brace profiles and cross sections
Fretboard layout with fret spacing (1–20)
Neck side profile and contour sections
Guitar side profile
Heel profile and heel block
Bridge dimensions and bridge pin spacing
Peghead layout and tuner hole locations
Nut and saddle slot dimensions
Truss rod dimensions and installation details
Neck block and end block dimensions
Body cross sections
Construction notes and reference dimensions
Measurements in both inches and millimeters
These plans can also be used to make:
Body molds
Peghead templates
Bridge templates
Neck profile templates
Shop reference drawings
Or simply framed as workshop artwork.
About the AGP-07
The AGP-07 features a classic auditorium body shape that offers an excellent balance between comfort and projection. Its proportions fall between a traditional small concert guitar and a full-size dreadnought, making it an excellent choice for builders seeking a versatile steel-string acoustic.
The detailed full-scale drawings cover every major component of the instrument and are intended for builders who already have a basic understanding of acoustic guitar construction.
Please Note
These are professional luthier construction plans, not a step-by-step instruction manual. They are intended to be used alongside standard guitar-building techniques and references.

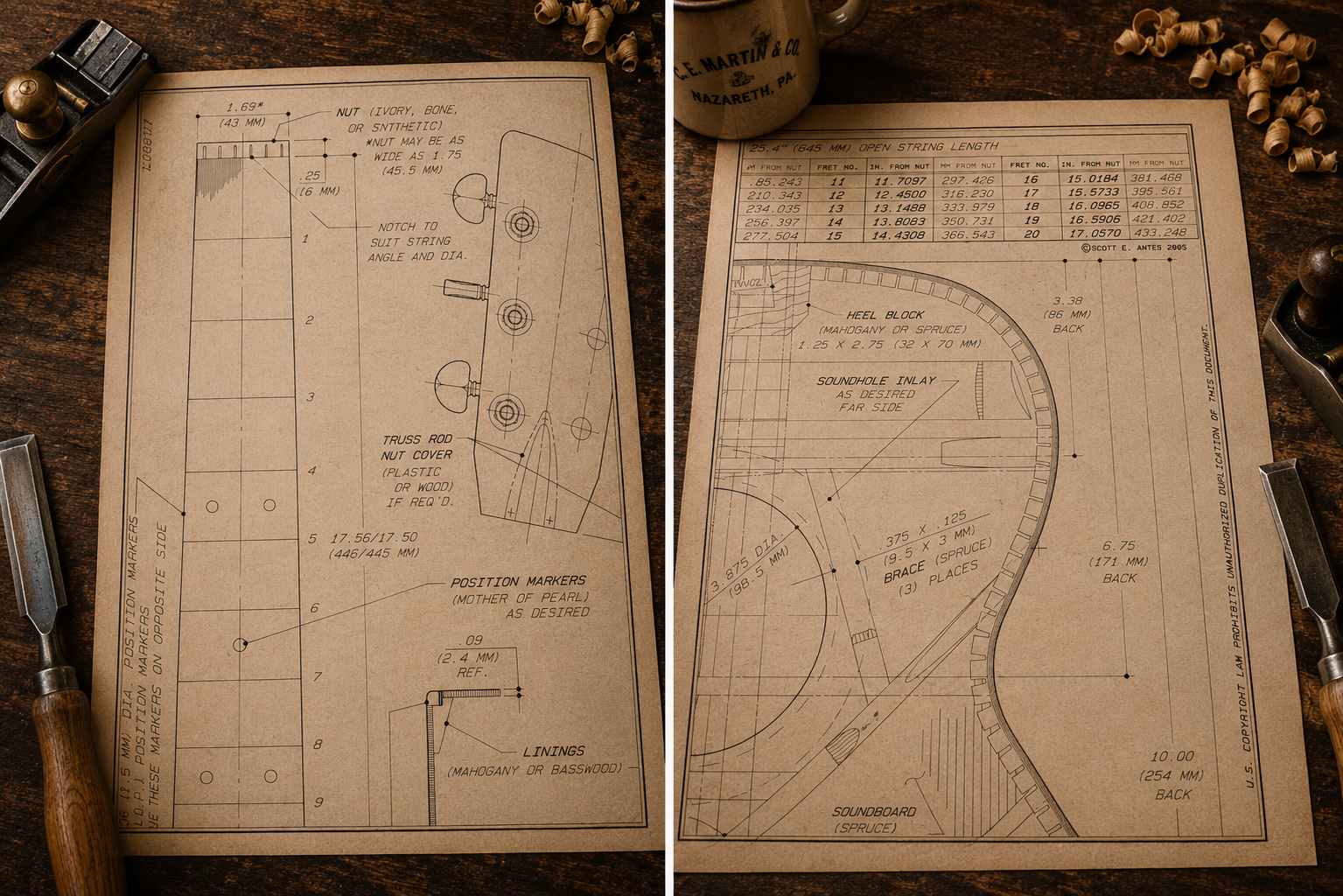

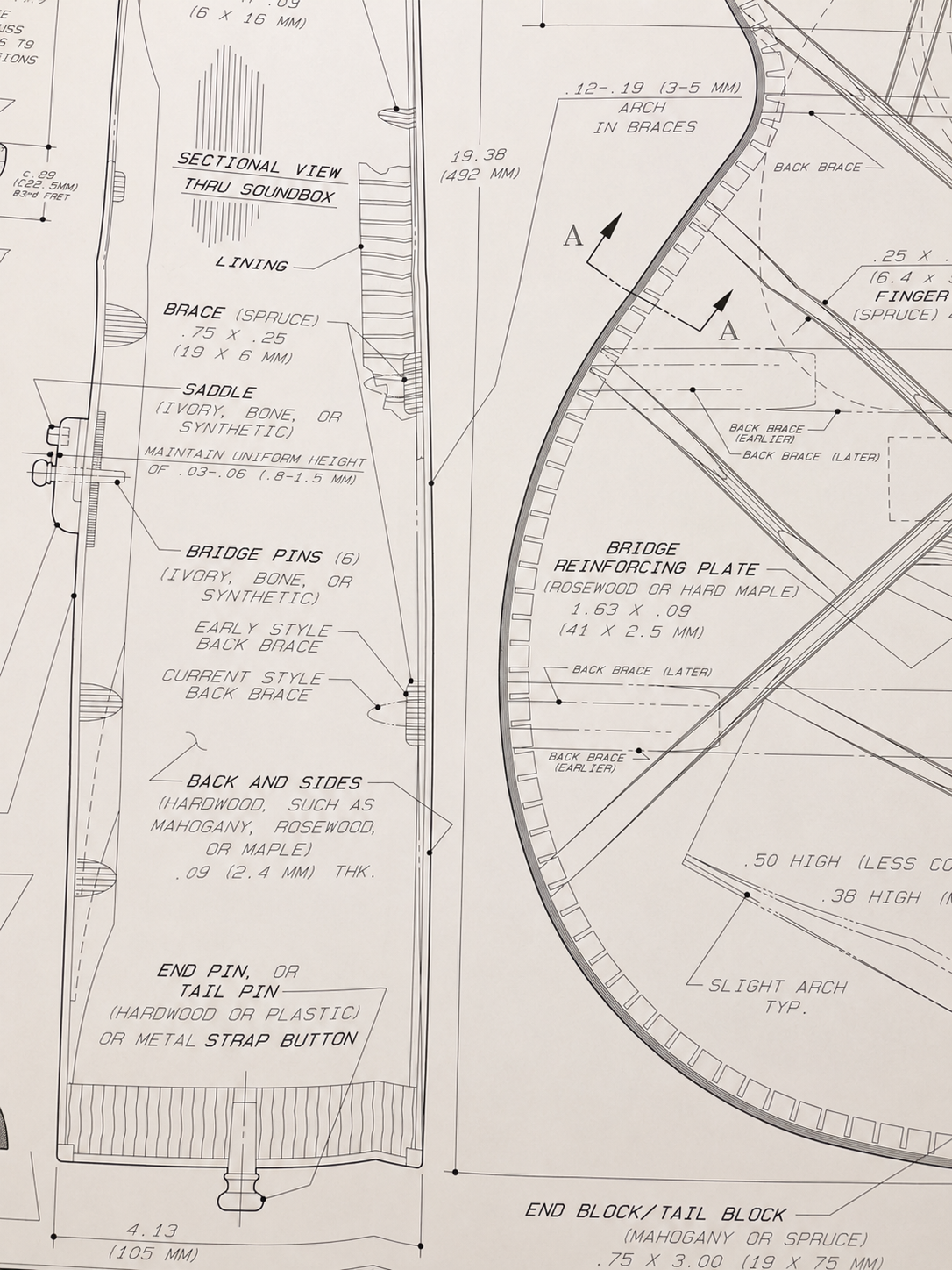

The first product image is an AI-generated illustration created to showcase the style of the plans. While it accurately represents the appearance of the product, the guitar shape, curves, and measurements shown in that image are not intended to be used for construction. The remaining images are photographs of the actual full-scale plans included with your purchase.
