Scott Antes AGP-01 Small Concert "Parlor" Guitar Plan

Designed by renowned guitar designer Scott E. Antes, the AGP-01 is a traditional steel-string small concert guitar plan featuring balanced body proportions, a comfortable waist, and classic X-braced construction. This is a 24.500” Scale(622.3 MM).

These plans are printed at full-size (1:1 scale) on heavy white paper measuring 35½" × 23¾" and are printed in the USA. Each set is carefully folded to approximately 12" × 9" and shipped in a protective folder.

This edition is offered through Luthier Suppliers with permission from the Antes family.

Free shipping within the United States. Please contact us for international shipping rates.

What's Included

Complete full-scale construction plans. Wood, hardware, and other guitar components are sold separately. These plans include full-scale drawings for nearly every wooden component of the guitar, along with detailed construction dimensions and reference information, including:

• Full body outline

• Top and back bracing layouts

• Brace profiles and cross sections

• Fretboard layout with fret spacing (1–20)

• Neck side profile and contour sections

• Guitar side profile

• Heel profile and heel block

• Bridge dimensions and bridge pin spacing

• Slotted Peghead layout and tuner hole locations with an Optional Solid Peghead Layout

• Nut and saddle slot dimensions

• Truss rod dimensions and installation details

• Neck block and end block dimensions

• Body cross sections

• Construction notes and reference dimensions

• Measurements in both inches and millimeters

These plans can also be used to make:

• Body molds

• Peghead templates

• Bridge templates

• Neck profile templates

• Shop reference drawings

• Or simply framed as workshop artwork.

About the AGP-01

The AGP-01 features a traditional small concert ("Parlor") body shape prized for its comfortable size, balanced response, and intimate, articulate tone. Its compact proportions make it an excellent choice for fingerstyle playing, light strumming, and builders seeking a classic steel-string acoustic inspired by early American guitars.

The detailed full-scale drawings cover every major component of the instrument including an extra optional solid pegged, and are intended for builders who already have a basic understanding of acoustic guitar construction.

Please Note

These are professional luthier construction plans, not a step-by-step instruction manual. They are intended to be used alongside standard guitar-building techniques and references.

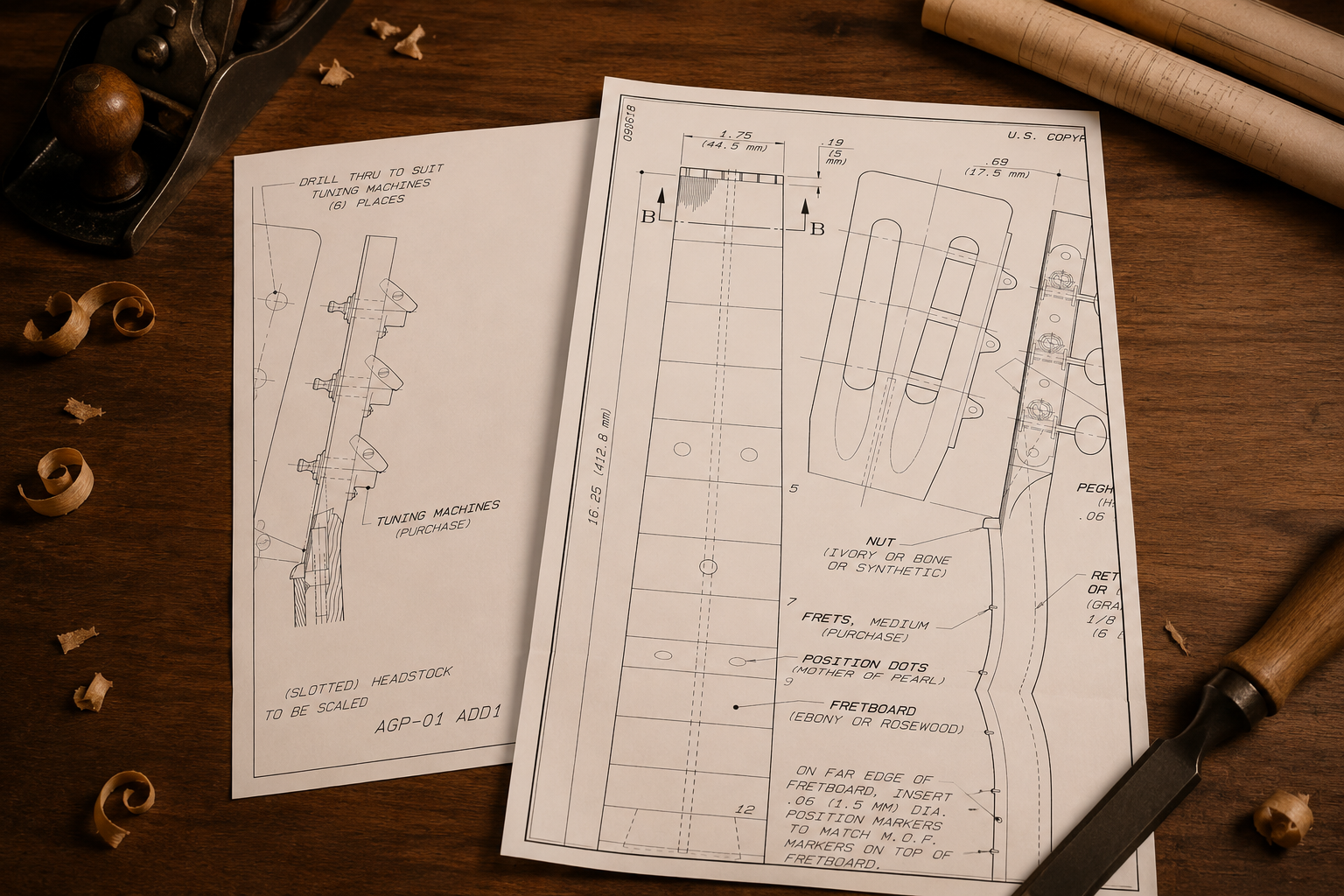

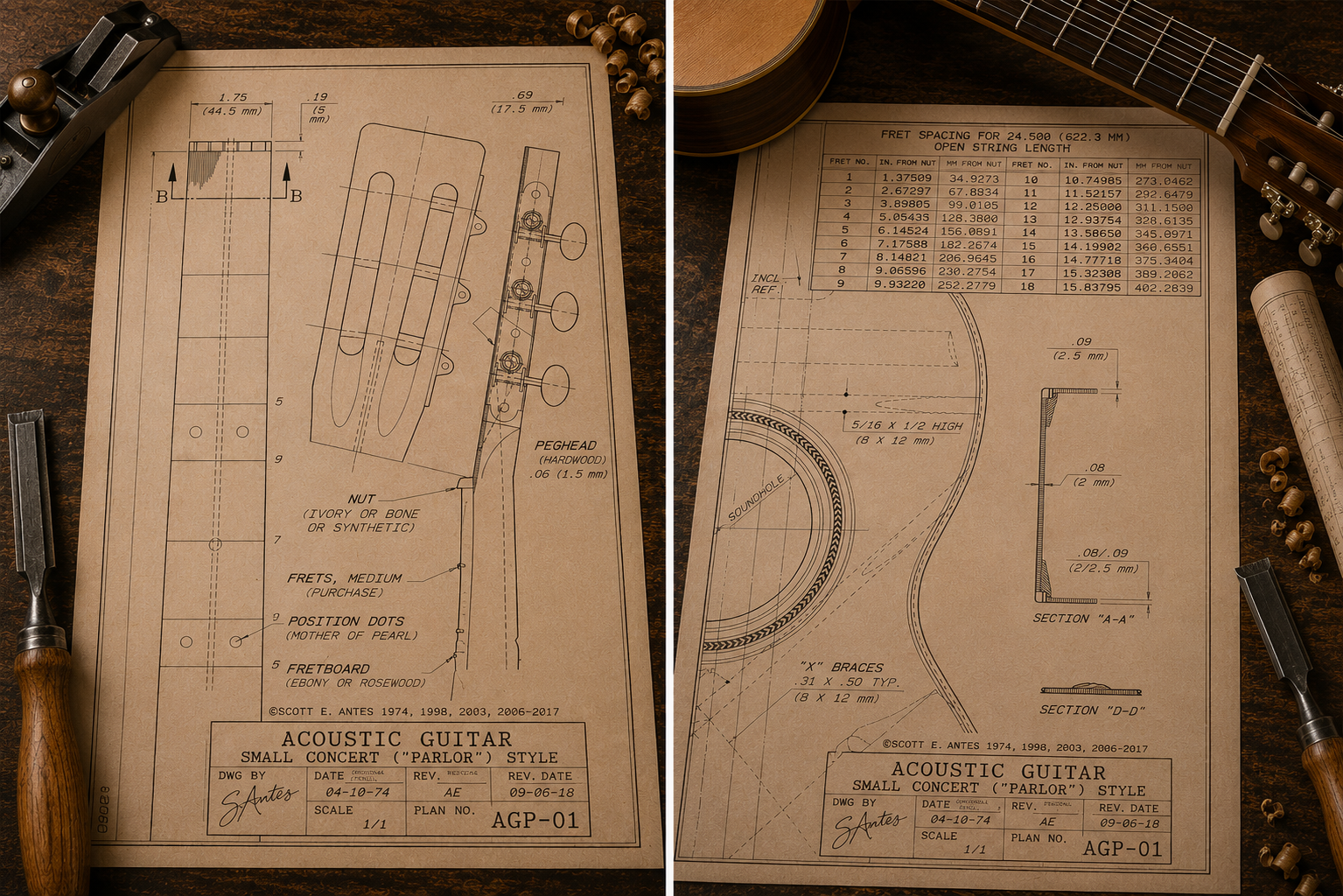

The first product image is an AI-generated illustration created to showcase the style of the plans. While it accurately represents the appearance of the product, the guitar shape, curves, and measurements shown in that image are not intended to be used for construction. The remaining images are photographs of the actual full-scale plans included with your purchase.
